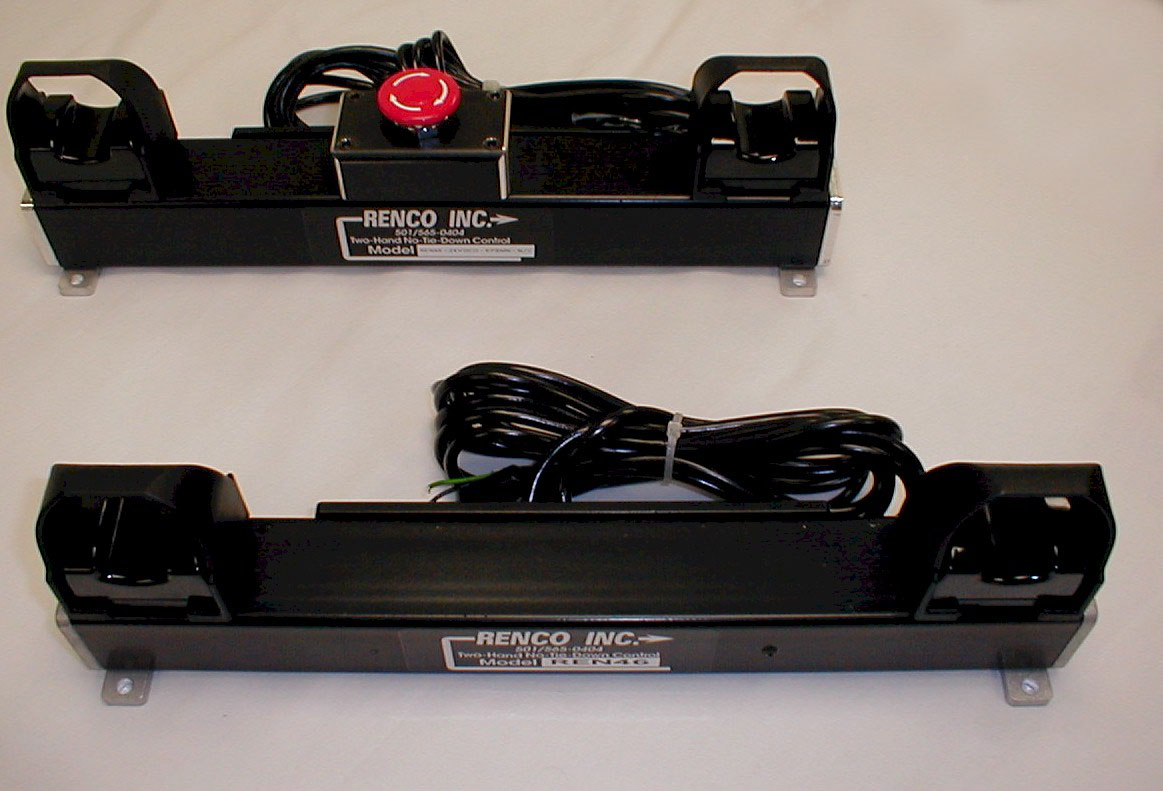

Series REN46 WITH
TOP MOUNTED PHOTOELECTRIC SENSORS.
GIVES A MAINTAINED OUTPUT SIGNAL WHEN BOTH LIGHT
BEAMS ARE BROKEN WITHIN .3 SECONDS AND HELD.
INSERT FINGERS TO BREAK LIGHT BEAMS, NO
PRESSURE REQUIRED
COMPACT DESIGN WITH GUARDED FINGER SLOTS.
INPUT AND OUTPUT CORDS INCLUDED.
QUICK AND SIMPLE INSTALLATION, BOLT THE CONTROL
DOWN AND PLUG IN
NO OUTPUT IF CONTROL POWERED UP WITH BEAMS
BROKEN.
120V AC INPUT AND OUTPUT. OTHER
CONFIGURATIONS ARE AVAILABLE
REN46
$669.00
OPTIONS
AVAILABLE ON THE REN46
-K
CONTACT
OUTPUT, SUGGESTED FOR CONNECTING TO PLC'S
N/C
-C
CANCELABLE
OUTPUT
$100.00
-P
.5
SECOND PULSE OUTPUT
$25.00
-PA
.1-30
SECOND OUTPUT
$200.00
-EPB
EXTRA
CENTER RED PUSH BUTTON, MOMENTARY
$100.00
-EPBMN
EXTRA
CENTER RED PUSH BUTTON, MAINTAINED
$100.00
-24VDCO
120V
AC INPUT, 24 VDC OUTPUT
$50.00
-24VDCI/O
24
VDC INPUT, 24 VDC OUTPUT
$25.00
-SEP-72
SEPARATE PUSH
BUTTONS OR OPERATORS IN ENCLOSURES, CONNECTED BY 5' CORD
$100.00
WARNING: ALL RENCO
CONTROLS ARE DESIGNED TO OPERATE PNEUMATIC VALVES AND
CYLINDERS. THEY ARE NOT TO BE USED WITH FLYWHEEL PRESSES,
BRAKE PRESSES OR SIMILAR DEVICES. IT IS THE BUYERS
RESPONSIBILITY TO DETERMINE THE USE AND MOUNTING LOCATION OF
THIS DEVICE. THIS EQUIPMENT PERFORMS THE FUNCTION OF A TWO
HAND NO TIE DOWN CONTROL ONLY, ALL OTHER PRESCRIBED SAFETY
DEVICES MUST BE USED WITH THIS EQUIPMENT. IT IS THE BUYERS
RESPONSIBILITY TO DETERMINE THE PROPER APPLICATION, LOCATION AND
USE OF THIS EQUIPMENT.
MADE
in the
U.S.A.
RENCO, INC. 6719 ALCOA ROAD
BENTON, ARKANSAS 72015 USA
501.565.0404
FAX 501.565.4796
