Renco Controls, Inc., Benton, Arkansas, Series REN28

ERGONOMICALLY DESIGNED PNEUMATIC
TWO-HAND NO-TIE-DOWN CONTROLS

Pneumatic Models                       Electric Models
REN23 | REN28 | REN300 | REN-CC-1004A | REN44 | REN45 | REN46

Series REN28-SET
SET OF 2 PALM BUTTONS WITH LOGIC, TWO-HAND NO-TIE-DOWN CONTROL. WORKING PRESSURE RANGE 60-100 PSI, 40 MICRON FILTERED DRY NONLUBRICATED

ONE PALM BUTTON GIVES A MAINTAINED OUTPUT SIGNAL
WHEN BOTH BUTTONS ARE PRESSED WITHIN .3 SECONDS AND HELD.


	COMPACT DESIGN WITH 1-3/8" PUSH BUTTONS (RECESSED 1/4").
	MOUNTS VERTICALLY OR HORIZONTALLY, NO MOUNTING BRACKET REQUIRED.
	LIGHT ACTUATION PRESSURE (5 OUNCES).
	MOUNTING SCREWS INCLUDED (10-32).
	1/8" NPT CONNECTIONS. 5/32 (4MM) PUSH LOCK FITTINGS OPTIONAL.
	ROUNDED EDGES, NO SHARP EDGES OR CORNERS TO INJURE OPERATOR.

THE SERIES REN28-SET IS TWO SEPARATE PALM BUTTONS THAT USE OUR LIGHT TOUCH BUTTONS, ATTACHED TO ONE PALM BUTTON IS OUR LOGIC MODULE. THEY ARE EASY TO INSTALL, MOUNT SECURELY THEN CONNECT A SUPPLY LINE TO EACH PALM BUTTON THEN CONNECT THE PALM BUTTONS WITH ONE AIR LINE. ONE PALM BUTTON GIVES A MAINTAINED OUTPUT SIGNAL WHEN BOTH PALM BUTTONS ARE PRESSED WITHIN .3 SECONDS. THE PART # IS REN28-SET FOR BOTH PALM BUTTONS. THE PART # FOR THE PALM BUTTON WITHOUT THE LOGIC MODULE, WHICH MAY BE USED A A 3-WAY PNEUMATIC PUSH BUTTON, IS REN28-100 ($45.00).

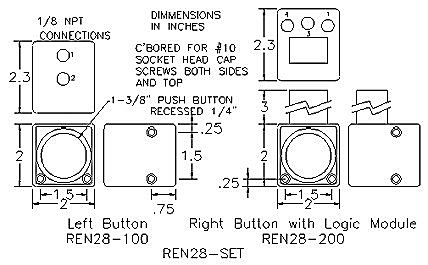

	REN28-SET

*OPTIONS AVAILABLE ON THE REN28-SET.*		*ADD*
-C	CANCELABLE OUTPUT. AN INPUT FROM A PRESSURE OR LIMIT VALVE WILL CANCEL THE OUTPUT.
-P	.4 SECOND ADJUSTABLE PULSED OUTPUT.-
-PA	.1 -30 SECONDS ADJUSTABLE PULSED OUTPUT.
-14	1/4" PUSH LOCK FITTINGS
-532	5/32 (4 MM) PUSH LOCK FITTINGS.
-G	BUTTON GUARDS. GUARDS THAT SURROUND THE BUTTONS AND EXTEND 1/2", STANDARD RECESS IS 1/4".

WARNING: ALL RENCO CONTROLS ARE DESIGNED TO OPERATE PNEUMATIC VALVES AND CYLINDERS. THEY ARE NOT TO BE USED WITH FLYWHEEL PRESSES, BRAKE PRESSES OR SIMILAR DEVICES. IT IS THE BUYERS RESPONSIBILITY TO DETERMINE THE USE AND MOUNTING LOCATION OF THIS DEVICE. THIS EQUIPMENT PERFORMS THE FUNCTION OF A TWO HAND NO TIE DOWN CONTROL ONLY, ALL OTHER PRESCRIBED SAFETY DEVICES MUST BE USED WITH THE EQUIPMENT. IT IS THE BUYERS RESPONSIBILITY TO DETERMINE THE PROPER APPLICATION, LOCATION AND USE OF THIS EQUIPMENT
